Video Mix Concat
Concatenates two video flows and create a new image with the videos concatenated vertically or horizontally.

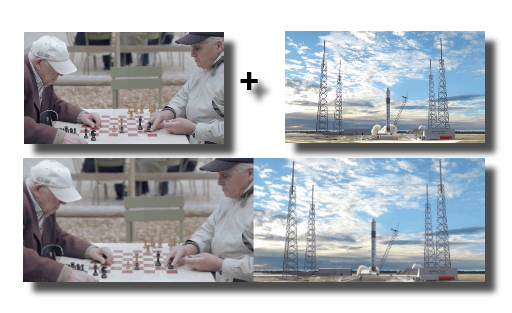

horizontal concatenation
The size of the video out is :
- horizontal
- new-width = video in1-width+video in2-width
- new-height= max(video in1-height,video in2-height)
- vertical
- new-width = max(video in1-width+video in2-width
- new-height= video in1-height+video in2-height
Settings
bypass
Bypasses the module.
video in
Video input flow(s).
video out
Video output flow(s).
process time
Total time used for the calculation of the module.
position
- horizontal: video in2 is concatenated to video in1 on the right.
- vertical: video in2 is concatenated to video in1 at the bottom.
