HH and Eurorack modular synth

Unread post by cmodica » 28 Oct 2022, 15:00

Does anyone use HH with a modular Eurorack synthesizer?

If so, whitch interface do you use to communicate between HH and the eurorack system?

Thanks, have a nice day.

User avatar
senso
Site Admin
Posts: 4424
Location: France
Contact:

Unread post by senso » 28 Oct 2022, 22:14

the Arturia BeatStep works fine with Usine.

User avatar
cmodica
Member
Posts: 606
Location: Pélissanne
Contact:

Unread post by cmodica » 29 Oct 2022, 11:10

Thank you.

But is it possible to send a clock from Usine to Modular Synth via BeatStep?
Can I program a sequencer, or a complex LFO in Usine and transform them into GATE and CV via BeatStep to send them to the Modular Synth?

I would like to use the power of Usine to modulate my Modular Synth ...
There are modules that transform midi into CV. But there are few of them and they are expensive. If someone has already experimented with this, I'm interested.
Thank you.

jacob raggers
New member
Posts: 3
Contact:

Unread post by jacob raggers » 29 Oct 2022, 13:21

Doepfer maybe? :lol:
Last edited by jacob raggers on 29 Oct 2022, 20:18, edited 1 time in total.

User avatar
x.iso
Member
Posts: 565
Location: RU, Saint-Petersburg
Contact:

Unread post by x.iso » 29 Oct 2022, 14:23

as long as you have audio interface with DC coupling, you can send out CV/Gate as audio out on different channels.
With controllers like BeatStep perhaps it's possible to feed it midi from Usine and then controller would convert it to CV/Gate?
join Hollyhock Usine Discord server: https://discord.gg/EdJarnE

Gilsornette
Member
Posts: 280
Contact:

Unread post by Gilsornette » 30 Oct 2022, 10:56

Hello,
I’m using this one http://www.hexinverter.net/mutant-brain which is really "multipurpose" ( several cv, gates, you can configurate as you want...), but have no USB and is not cheap.
Or Doepfer Mcv 4, cheaper but with less possibilities https://doepfer.de/mcv4.htm

User avatar
cmodica
Member
Posts: 606
Location: Pélissanne
Contact:

Unread post by cmodica » 31 Oct 2022, 08:54

Thank you.
The mutant brain serms to be very usefull and not so much expensive. The Shuttle Control by endorphin.es is very more expensive.
https://www.endorphin.es/modules/p/shuttle-control
… but there is an usb plug.

Is it easy to patch in HH for work with it ?
Thank you.

Gilsornette
Member
Posts: 280
Contact:

Unread post by Gilsornette » 31 Oct 2022, 12:55

Yes, it's quite easy to patch. I use a rack with midi inputs and clock sources that I can patch to Mutant Brain.

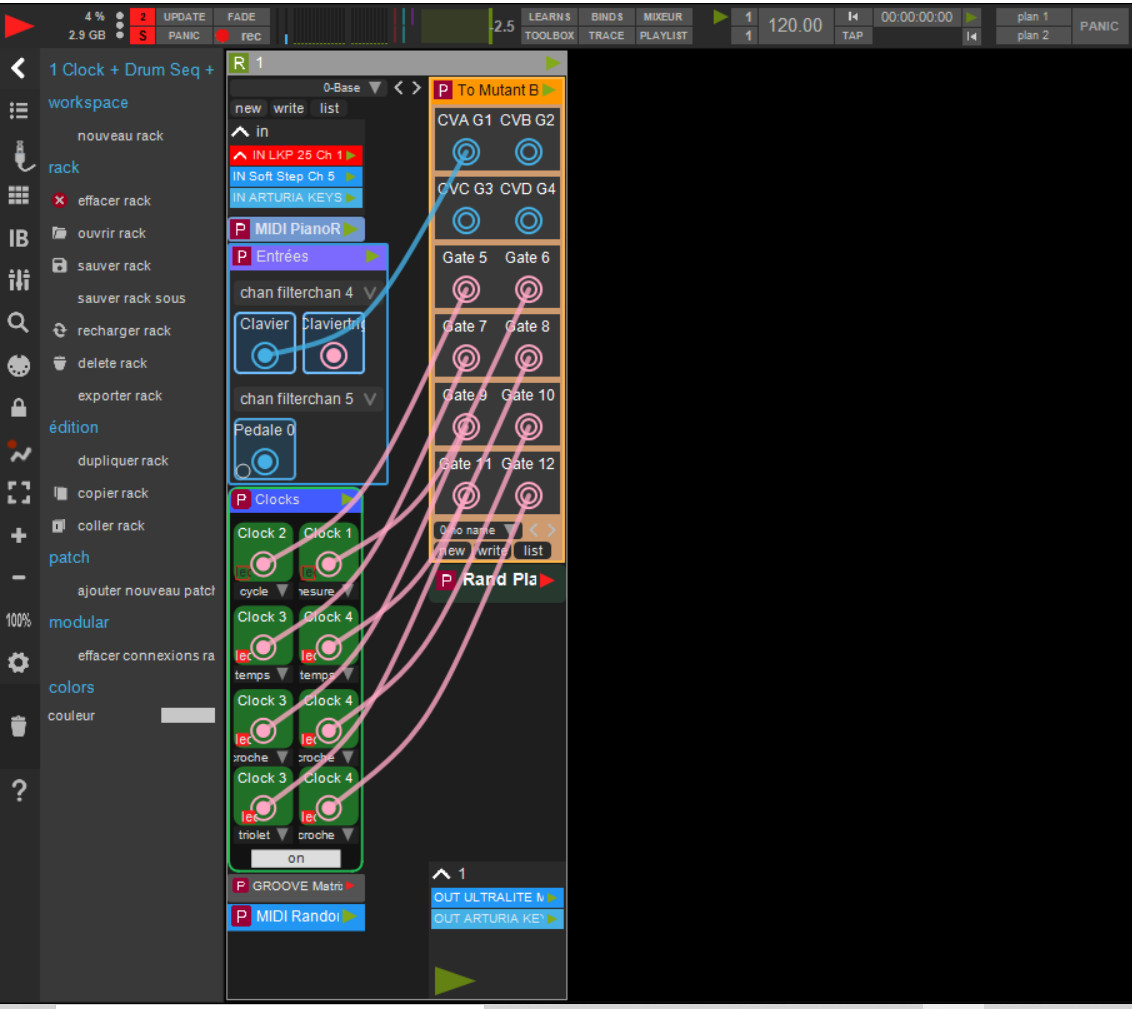

Here is a screenshot
MUtant brain.jpg

User avatar
cmodica
Member
Posts: 606
Location: Pélissanne
Contact:

Unread post by cmodica » 01 Nov 2022, 08:42

Thank you.
If i buy it, i will come back here to share.
